Galfan Wire_Hengshui Jinda Machinery Manufacturing Co., LTD

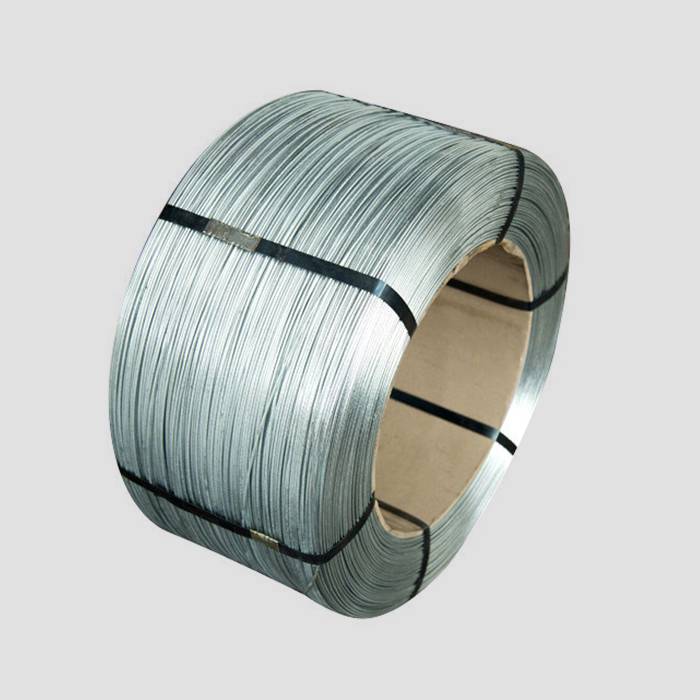

Galfan Wire

Galfan wire is covered with Zn-Al (Al 5%, Zn 95% or Al 10%, Zn 90%) alloy. Its corrosion resistance performance is about three times stronger than traditional galvanized wire. This is why it can be used to achieve a longer service life than the wires which are made of other materials. Through the replacement of traditional zinc coating with a thinner galfan wire coating, it offers improved weldability and formability properties.

· Longer service life than galvanized wire.

· Strong corrosion resistance.

· Good ductility.

· Customized sizes available.

· Free samples are accepted.

· Large orders enjoy special discount.

Specifications

· Coating material: Zinc and aluminum alloy (Al 5%, Zn 95% or Al 10%, Zn 90%)

· Wire diameter: 1.24 mm – 5.5 mm

· Tensile strength: 1290 MPa – 1340 MPa

· Packing: spool or coil wrapped with moisture-proof paper or plastic film.

Nominal Diameter	Tensile Strength	Stress at 1% Elongation	Twist	Elongation	Standard
mm	MPa	MPa	Times/360 °C	Lo=250 mm	As per GB, EN, IEC, JIS, ASTM standard, as well as customers' request
1.24–2.25	≥1340	≥1170	≥18	≥3%
2.25–2.75	≥1310	≥1140	≥16	≥3%
2.75–3.00	≥1310	≥1140	≥16	≥3.5%
3.00–3.50	≥1290	≥1100	≥14	≥3.5%
3.50–4.25	≥1290	≥1100	≥12	≥4%
4.25–4.75	≥1290	≥1100	≥12	≥4%
4.75–5.50	≥1290	≥1100	≥12	≥4%

Galfan Wire(图3)

Galfan Wire

Galfan Wire
