Gabion box

Gabion box

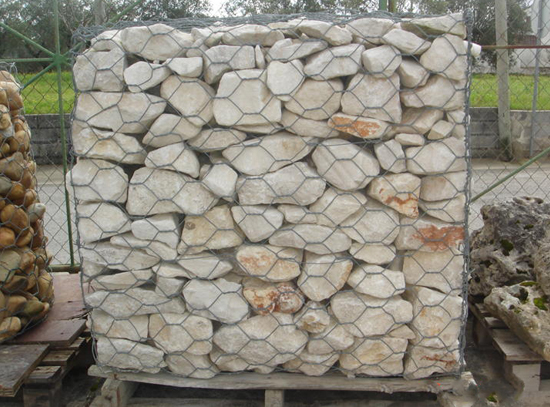

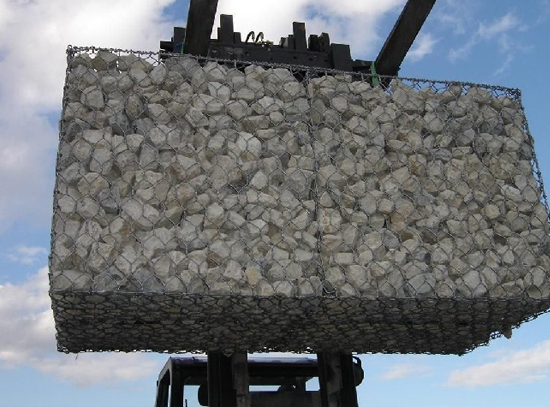

Gabion cages are assembled by various mesh specifications of gabion cages in accordance with ASTM A975-97 specifications, gabion cages are divided into a number of cells by 1 meter spacer (twisted-hexagonal metal mesh), in order to strengthen the strength of the gabion cage structure, all the surface of the mesh plate edge are made of thicker steel wire. Control and guide rivers and flood spillway DAMS and diversion DAMS Rock fall prevention prevention of water and soil erosion Bridge protection Retaining structure coastal defense works Port works retaining wall road protection.

The combination of stone cage:

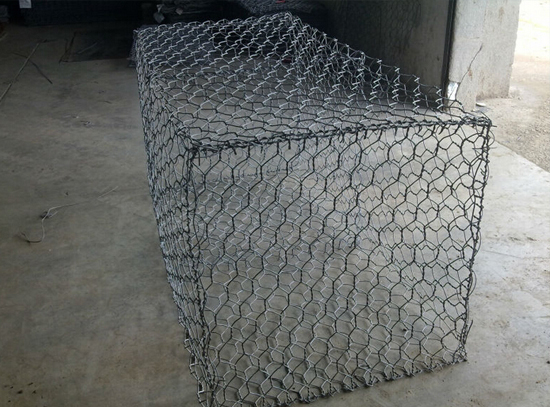

1, stone cage for a molding production, in addition to the cover plate, the side plate, the end plate, and the bottom plate are inseparable. Length/width tolerance (±5%) Height tolerance (±5%), the interior is separated into independent units every 1 meter by partitions.

2, stone cage cage assembly method, cover plate, side plate, end plate, bottom plate separate production assembly into the cage, each part of the spiral wire wrapped and bundled, cage all edge wire are using coarse wire to strengthen the strength of the stone cage net.

Stone cage cage - installation

1, the stone cage staggered layout in place to avoid longitudinal through the joint.

2, the four sides of the stone cage cage stand up, with the binding line will be adjacent edge lock, lock, the binding line around the two overlapping frame line (stitching edge) or frame line and the double twisted edge of the cage (stitching grid) spiral twist, to avoid heavy galvanizing damage, pitch is not more than 50 mm.

3, when the bottom of the completed network installation of gabion cages, the application of binding line along the newly installed gabion cages lower border will be fixed on the bottom of the gabion cages, the same layer adjacent gabion cages also used to tie each other, so that gabion cages connected into one.

4, in the construction of the same horizontal layer of a unit project, the gabion net should be all in place before starting to fill the pebbles, in order to prevent the gabion net deformation, adjacent two gabion cages (including the adjacent cell of the same gabion cage) filling stone height difference should not be greater than 35 cm; 5, stone cage before installation, should be properly trimmed bank slope and ground, and as far as possible to maintain the original shape of the bank slope, but there should be no obvious uplift and depression.

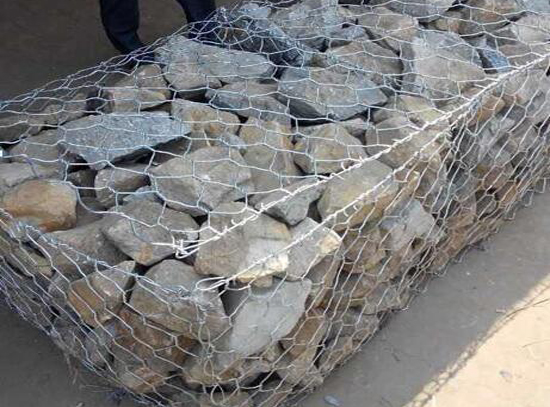

6, the filled pebble is selected on the floodplain, its compressive strength should meet the design requirements, the pebble particle size should be between 8 and 20 cm, and the size is required to be reasonable to achieve the design requirements of the void and ensure the straight shape of the stone cage net.

Stone cage use:

This product is often used in highway, railway guardrail, slope protection, slope greening, mountain along the surface, hanging net grouting, well and lane protection, construction, aquaculture nets, zoo fences, grassland fences, hillside cages, flood cage, berm fence, control and guide river direction, flood dam and diversion channel, rock fall protection, bridge protection, soil consolidation structure, retaining wall, Soil erosion prevention, coastal defense engineering, port engineering, etc.
